Fangcheng Electronics (Dongguan) Co., Ltd.: A factory specializing in the design, manufacture and sales of magnetic components such as inductors, transformers, current transformers, planar transformers, etc.

The main application areas of the products are photovoltaic/wind power inverters, charging piles, new energy vehicles, communications and module power supplies, communication equipment, industrial control, rail transit, military/medical, aviation power supplies and other fields.

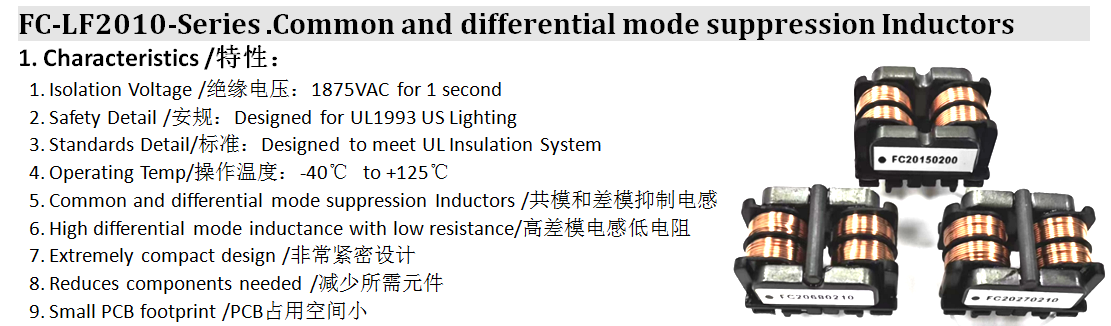

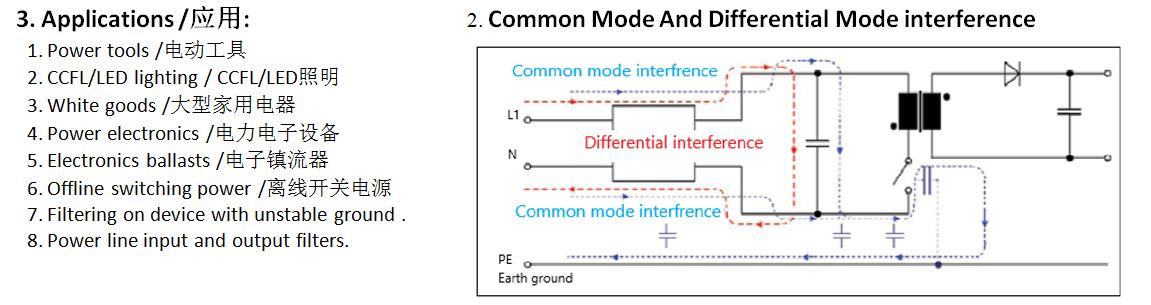

1. Fangcheng Electronics R&D and design launches high-efficiency filter circuit design and selection - application of magnetic integrated common differential mode inductor: common differential mode magnetic integrated inductor, characteristics: common mode and differential mode magnetic integrated integrated design, one component can integrate common mode inductor and differential mode inductor at the same time, effectively suppress the EMC ripple interference of the circuit input end, and protect the circuit from working stably. At the same time, starting from the design to save PCB board space, it can also save component costs. Common mode inductor range: 3.3mH-100mH Magnetic integrated synchronous integrated differential mode inductor range: 85-5000uH Working current 500mA-2.5A.

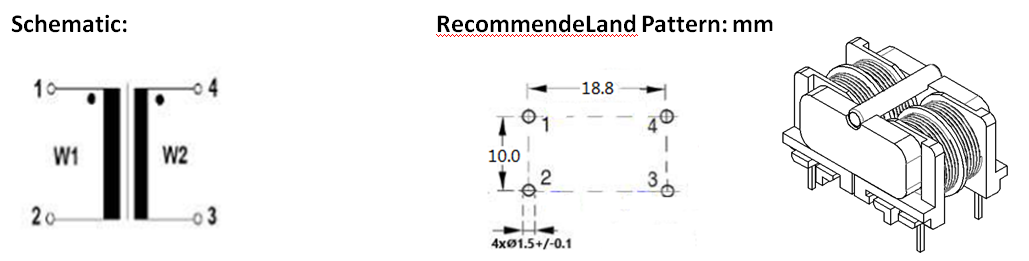

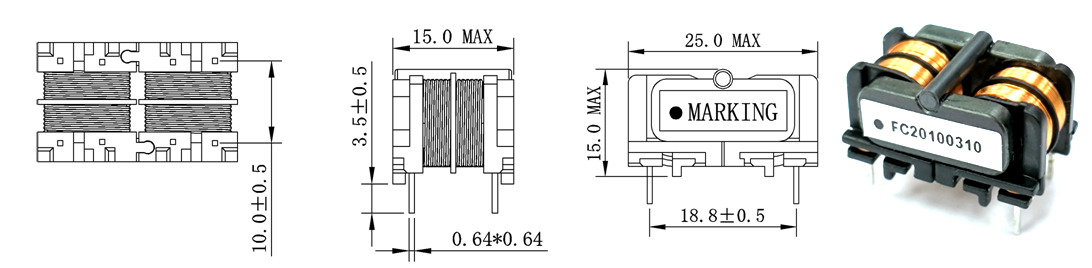

2. Design size and installation:Dimensions: mm

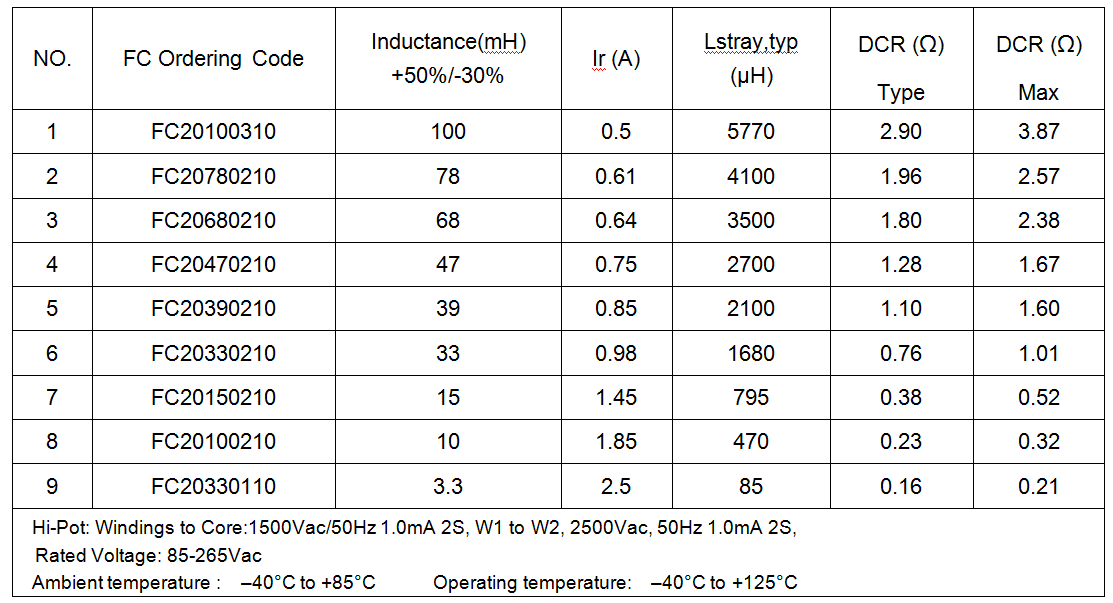

3. Electrical Properties:
