Fangcheng Electronics (Dongguan) Co., Ltd. is committed to developing and producing module power supply surface mount current transformers& nbsp; 100% localization research and development production, providing customers with localization commitment letters simultaneously. The products meet the standards of industrial grade/general military grade/seven specialty/military grade (can refer to GJB33A/GJB128A), breaking through the limitations of importing magnetic components of the same specifications from abroad, and providing comprehensive technical support to domestic customer enterprises. The products are applied in module communication power supply, rail transit power supply, and industrial control field power supply.

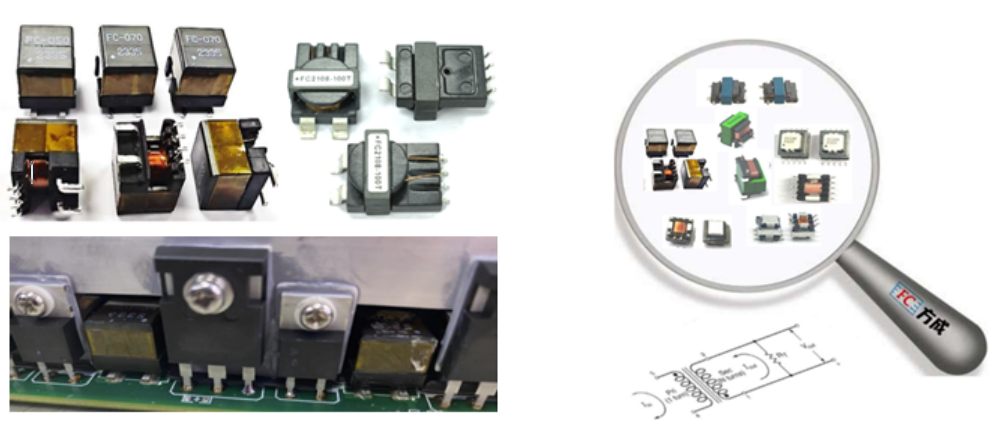

8 series of transformer patch specifications and applications: FC-SCT4.2/4.6/5.0/6.0/8.3/8.5/2010-Series

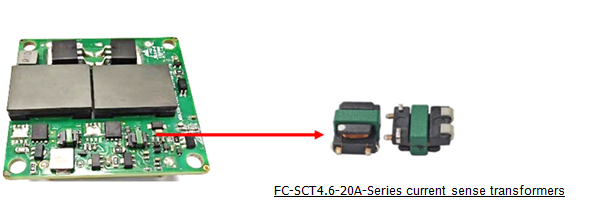

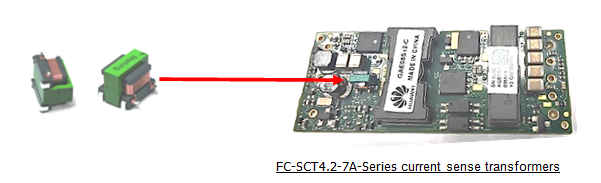

1、FC-SCT series current sense transformers

2、There are two modes of regulating the output voltage of switched mode power sup-ply.

3、 For voltage regulation,the output voltage is measured directly and compared with a “reference voltage”.For current regulation (Current Mode,CM),the primary current is measured.The output voltage serves as a reference here.

4. Customer power application, module communication power supply

5. Module communication power supply, BMS, micro power supply

6. The product design structure is small in size, realizing SMT automated installation and meeting UL safety creepage distance:AC3750V

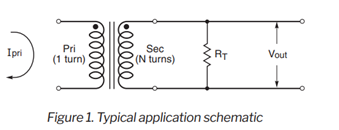

7. Design application circuit connection:
